Stainless Ladders

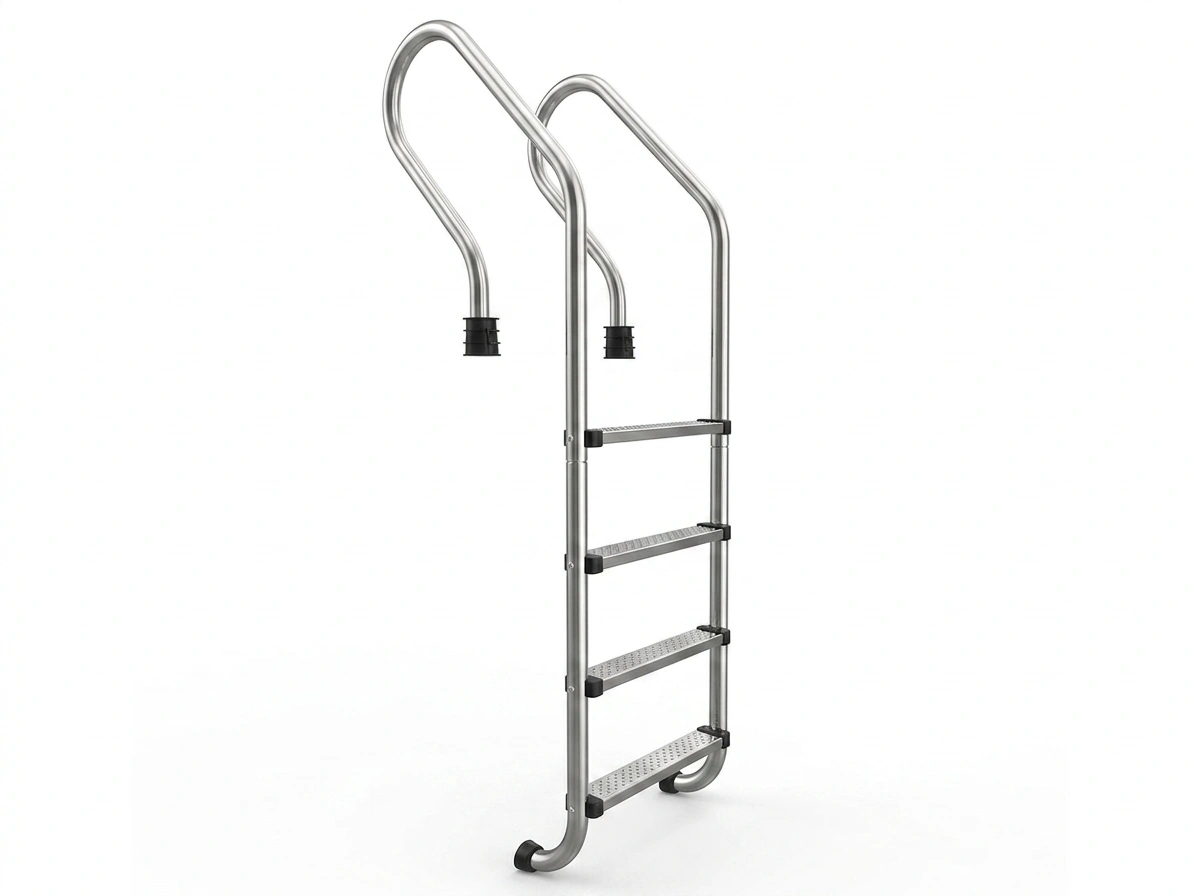

MIXTO-TYPE LADDER
Mixto-type pool ladder, manufactured in AISI 304 and AISI 316 grades, combining the Muro type's narrow profile with a wider side-support dimension. Available with 2 to 5 steps. Manufactured flangeless; a flanged mounting option is offered on request.
Click to zoom
Product Information
Mixto-type pool ladder, manufactured in AISI 304 and AISI 316 grades, combining the Muro type's narrow profile with a wider side-support dimension. Available with 2 to 5 steps. Manufactured flangeless; a flanged mounting option is offered on request.
Technical Parameters
AISI 316
CRNI-MX22 Steps
- Number of Steps
- 2
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 710 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX33 Steps
- Number of Steps
- 3
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 960 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX44 Steps
- Number of Steps
- 4
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 1210 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX55 Steps
- Number of Steps
- 5
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 1460 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
AISI 304
CRNI-MX2-3042 Steps
- Number of Steps
- 2
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 710 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX3-3043 Steps
- Number of Steps
- 3
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 960 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX4-3044 Steps
- Number of Steps
- 4
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 1210 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
CRNI-MX5-3045 Steps
- Number of Steps
- 5
- Dimension A (Step Width)
- 350 mm
- Dimension B
- 620 mm
- Dimension C
- 250 mm
- Dimension D (Total Height)
- 1460 mm
- Dimension E
- 522 mm
- Dimension F
- 500 mm
- Wall Thickness
- 1,5 mm
- Installation
- Flangeless (flanged option available — ask for pricing)
Technical Parameters
AISI 316
| Code | CRNI-MX2 | CRNI-MX3 | CRNI-MX4 | CRNI-MX5 |
| Basamak Sayısı | 2 Steps | 3 Steps | 4 Steps | 5 Steps |
| Number of Steps | 2 | 3 | 4 | 5 |
| Dimension A (Step Width) | 350 mm | 350 mm | 350 mm | 350 mm |
| Dimension B | 620 mm | 620 mm | 620 mm | 620 mm |
| Dimension C | 250 mm | 250 mm | 250 mm | 250 mm |
| Dimension D (Total Height) | 710 mm | 960 mm | 1210 mm | 1460 mm |
| Dimension E | 522 mm | 522 mm | 522 mm | 522 mm |
| Dimension F | 500 mm | 500 mm | 500 mm | 500 mm |
| Wall Thickness | 1,5 mm | 1,5 mm | 1,5 mm | 1,5 mm |
| Installation | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) |
AISI 304
| Code | CRNI-MX2-304 | CRNI-MX3-304 | CRNI-MX4-304 | CRNI-MX5-304 |
| Basamak Sayısı | 2 Steps | 3 Steps | 4 Steps | 5 Steps |
| Number of Steps | 2 | 3 | 4 | 5 |
| Dimension A (Step Width) | 350 mm | 350 mm | 350 mm | 350 mm |
| Dimension B | 620 mm | 620 mm | 620 mm | 620 mm |
| Dimension C | 250 mm | 250 mm | 250 mm | 250 mm |
| Dimension D (Total Height) | 710 mm | 960 mm | 1210 mm | 1460 mm |
| Dimension E | 522 mm | 522 mm | 522 mm | 522 mm |
| Dimension F | 500 mm | 500 mm | 500 mm | 500 mm |
| Wall Thickness | 1,5 mm | 1,5 mm | 1,5 mm | 1,5 mm |
| Installation | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) | Flangeless (flanged option available — ask for pricing) |
Technical Drawing Downloads
Get a quote for MIXTO-TYPE LADDER
Contact us for technical details, dimensions and pricing — we respond within 24 hours.
AISI 304/316 StainlessIP68 CertifiedCE Compliant
