LED Lighting Fixtures

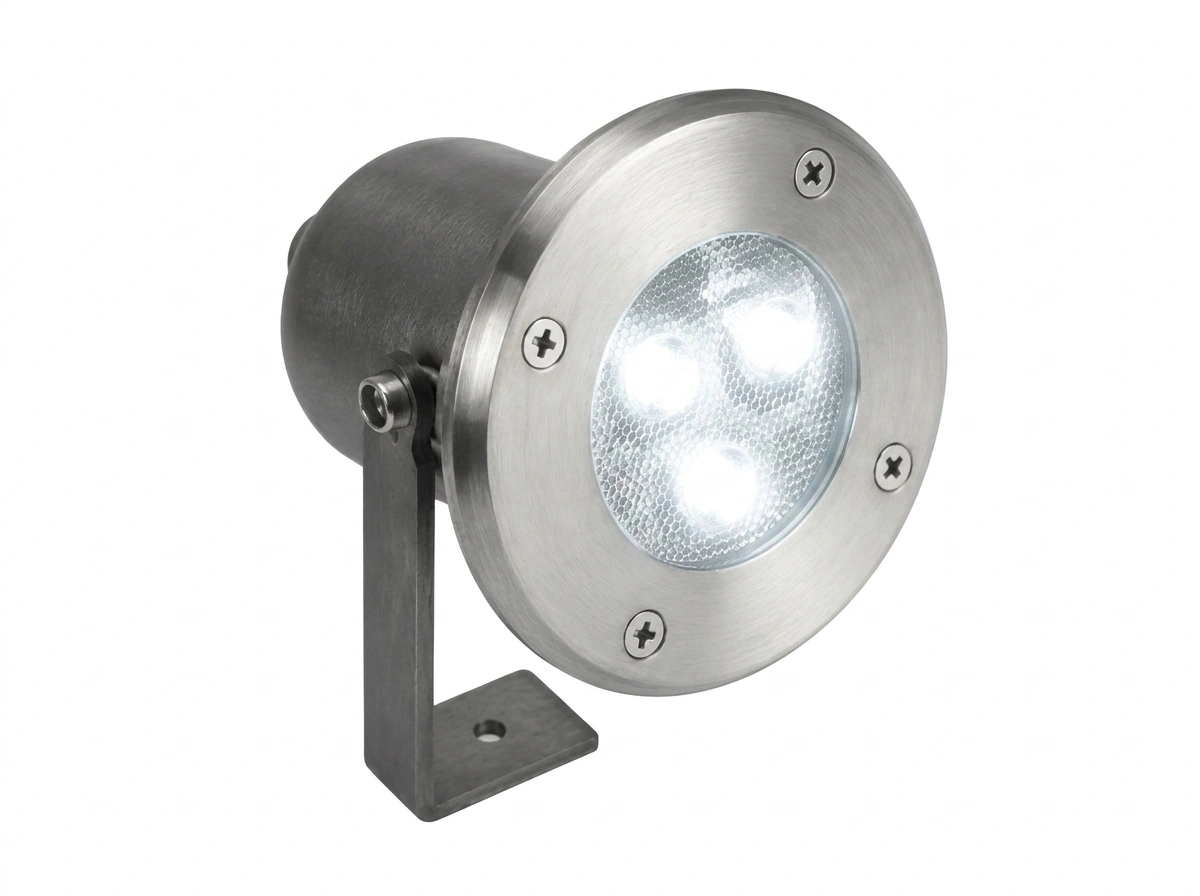

3 POWER LED FIXTURE — FOOTED FULL STAINLESS STEEL
3 Power LED lighting fixture with a full stainless steel body, mounted via a wall or floor fixing foot. Offered in AISI 304 or AISI 316 grade stainless steel for the durability required in ornamental pool and landscape lighting projects. Manufactured in White, Warm White, Red, Green, Blue and Full RGB color options. For projects requiring pipe-slip mounting, the 3-power-ledli-ayakli-komple-paslanmaz series is recommended.
Click to zoom
Product Information
3 Power LED lighting fixture with a full stainless steel body, mounted via a wall or floor fixing foot. Offered in AISI 304 or AISI 316 grade stainless steel for the durability required in ornamental pool and landscape lighting projects. Manufactured in White, Warm White, Red, Green, Blue and Full RGB color options. For projects requiring pipe-slip mounting, the 3-power-ledli-ayakli-komple-paslanmaz series is recommended.
Technical Parameters
00047-CWhite (CW)
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V AC
- Frequency
- 50/60 Hz
- Lumen
- ≤180 Lm
- Light Intensity
- ≤67.182 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00048-CDaylight (WW)
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V AC
- Frequency
- 50/60 Hz
- Lumen
- ≤162 Lm
- Light Intensity
- ≤60.465 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00049-CRed
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V AC
- Frequency
- 50/60 Hz
- Lumen
- ≤120 Lm
- Light Intensity
- ≤44.790 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00050-CGreen
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V AC
- Frequency
- 50/60 Hz
- Lumen
- ≤165 Lm
- Light Intensity
- ≤61.584 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00051-CBlue
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V AC
- Frequency
- 50/60 Hz
- Lumen
- ≤39 Lm
- Light Intensity
- ≤14.559 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00052-CFull RGB
- Body Material
- Full Stainless Steel (AISI 304)
- LED Type
- Power LED
- Number of LEDs
- 3 pcs
- Power
- 3W ±10%
- Input Voltage
- 12V±1V DC
- Frequency
- —
- Lumen
- ≤128 Lm
- Light Intensity
- ≤47.892 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 4x0.75 mm² TTR
- Mounting Type
- Pedestal-mounted (with wall/floor fixing foot)
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
Technical Parameters
| Code | 00047-C | 00048-C | 00049-C | 00050-C | 00051-C | 00052-C |
| Color | White (CW) | Daylight (WW) | Red | Green | Blue | Full RGB |
| Body Material | Full Stainless Steel (AISI 304) | Full Stainless Steel (AISI 304) | Full Stainless Steel (AISI 304) | Full Stainless Steel (AISI 304) | Full Stainless Steel (AISI 304) | Full Stainless Steel (AISI 304) |
| LED Type | Power LED | Power LED | Power LED | Power LED | Power LED | Power LED |
| Number of LEDs | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 3 pcs |
| Power | 3W ±10% | 3W ±10% | 3W ±10% | 3W ±10% | 3W ±10% | 3W ±10% |
| Input Voltage | 12V±1V AC | 12V±1V AC | 12V±1V AC | 12V±1V AC | 12V±1V AC | 12V±1V DC |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | — |
| Lumen | ≤180 Lm | ≤162 Lm | ≤120 Lm | ≤165 Lm | ≤39 Lm | ≤128 Lm |
| Light Intensity | ≤67.182 mcd | ≤60.465 mcd | ≤44.790 mcd | ≤61.584 mcd | ≤14.559 mcd | ≤47.892 mcd |
| Operating Temperature | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C |
| Cable Length | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m |
| Cable Type | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 4x0.75 mm² TTR |
| Mounting Type | Pedestal-mounted (with wall/floor fixing foot) | Pedestal-mounted (with wall/floor fixing foot) | Pedestal-mounted (with wall/floor fixing foot) | Pedestal-mounted (with wall/floor fixing foot) | Pedestal-mounted (with wall/floor fixing foot) | Pedestal-mounted (with wall/floor fixing foot) |
| IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Maximum Lifespan | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
