LED Lighting Fixtures
SINGLE LED STAINLESS STEEL FIXTURE
Single-LED stainless steel lighting fixture that creates a starlight visual effect for pool viewers when installed in the pool floor. Manufactured in AISI 304 or AISI 316 grade stainless steel. Available in White, Warm White, Red, Green, Blue and Full RGB color options; single-color versions can also be supplied at 12V on request.
Click to zoom
Product Information
Single-LED stainless steel lighting fixture that creates a starlight visual effect for pool viewers when installed in the pool floor. Manufactured in AISI 304 or AISI 316 grade stainless steel. Available in White, Warm White, Red, Green, Blue and Full RGB color options; single-color versions can also be supplied at 12V on request.
Technical Parameters
00053-AWhite (CW)
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤120 Lm
- Light Intensity
- ≤22.394 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours

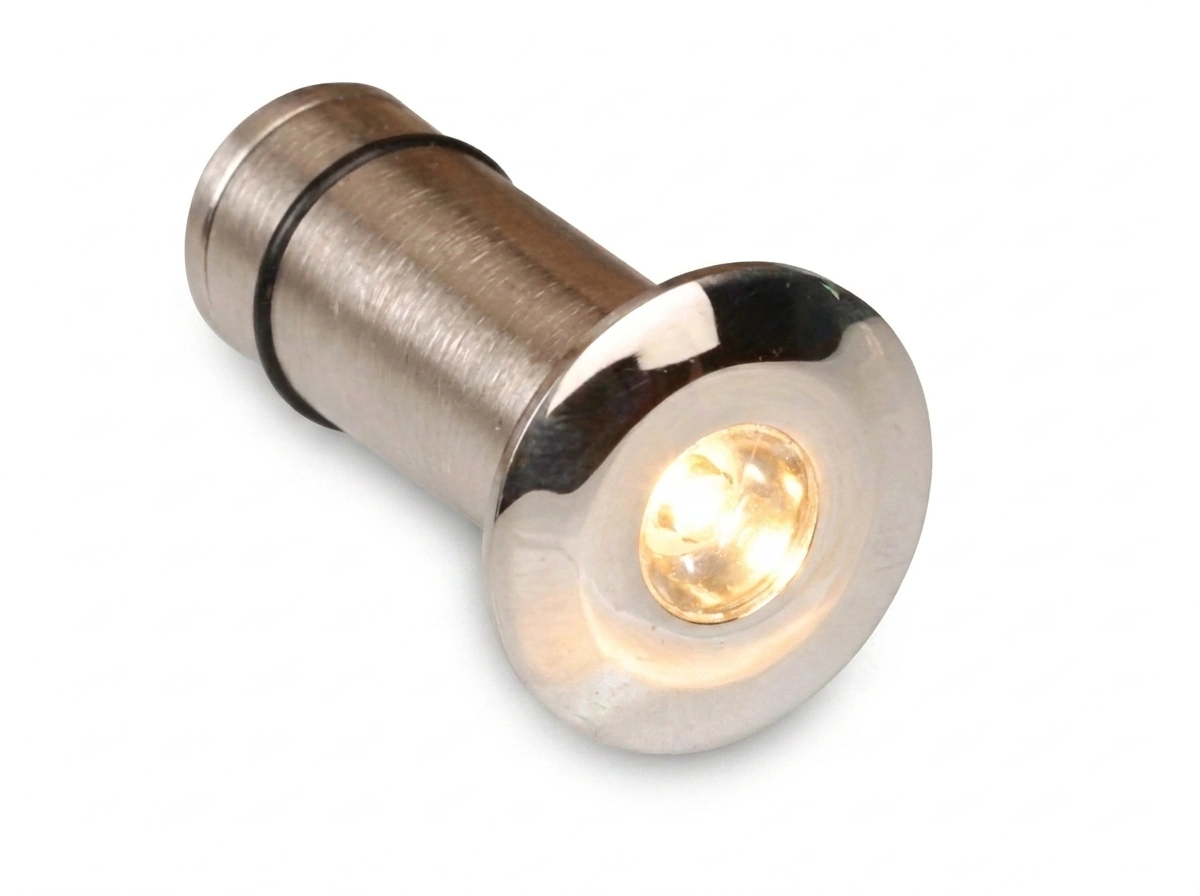

00054-ADaylight (WW)
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤110 Lm
- Light Intensity
- ≤22.155 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours

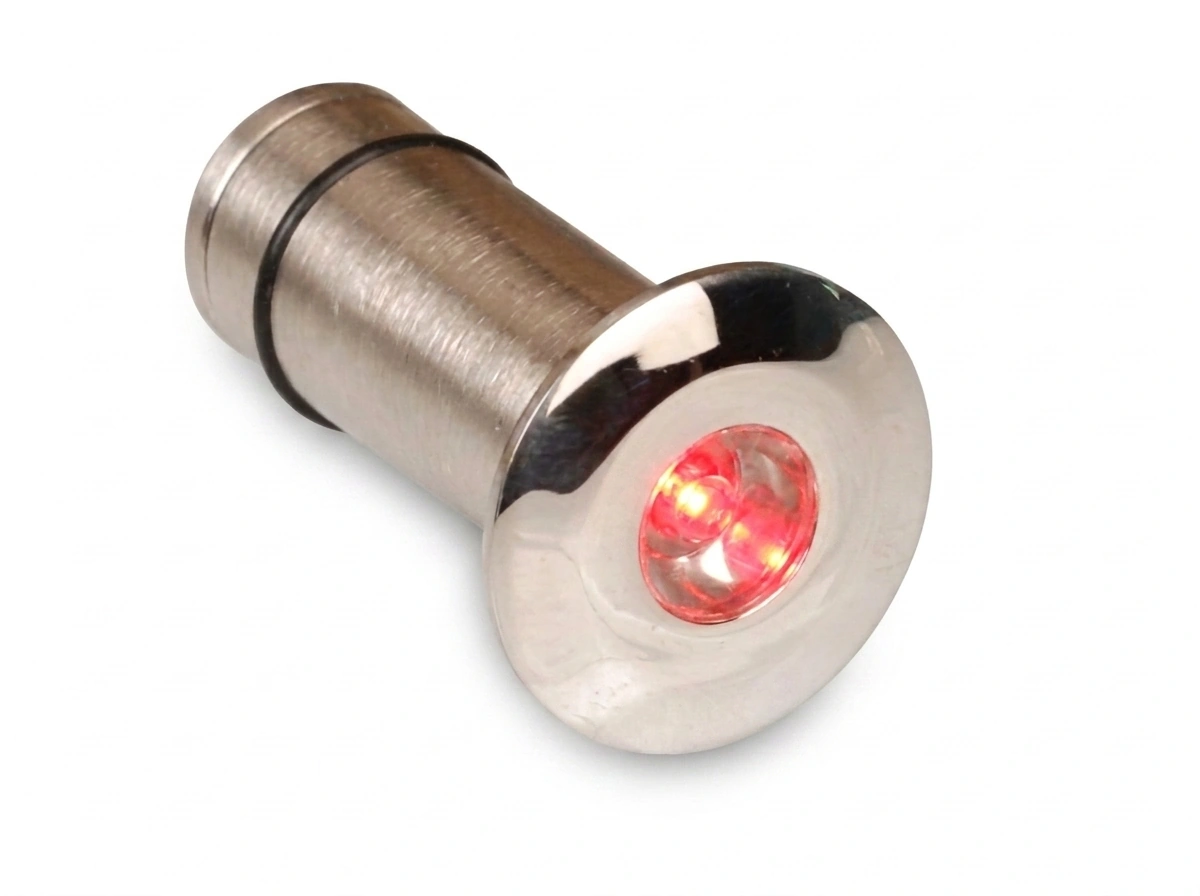

00055-ARed
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤52 Lm
- Light Intensity
- ≤14.930 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00056-AGreen
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤57 Lm
- Light Intensity
- ≤20.528 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
00057-ABlue
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤24 Lm
- Light Intensity
- ≤4.853 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 2x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours

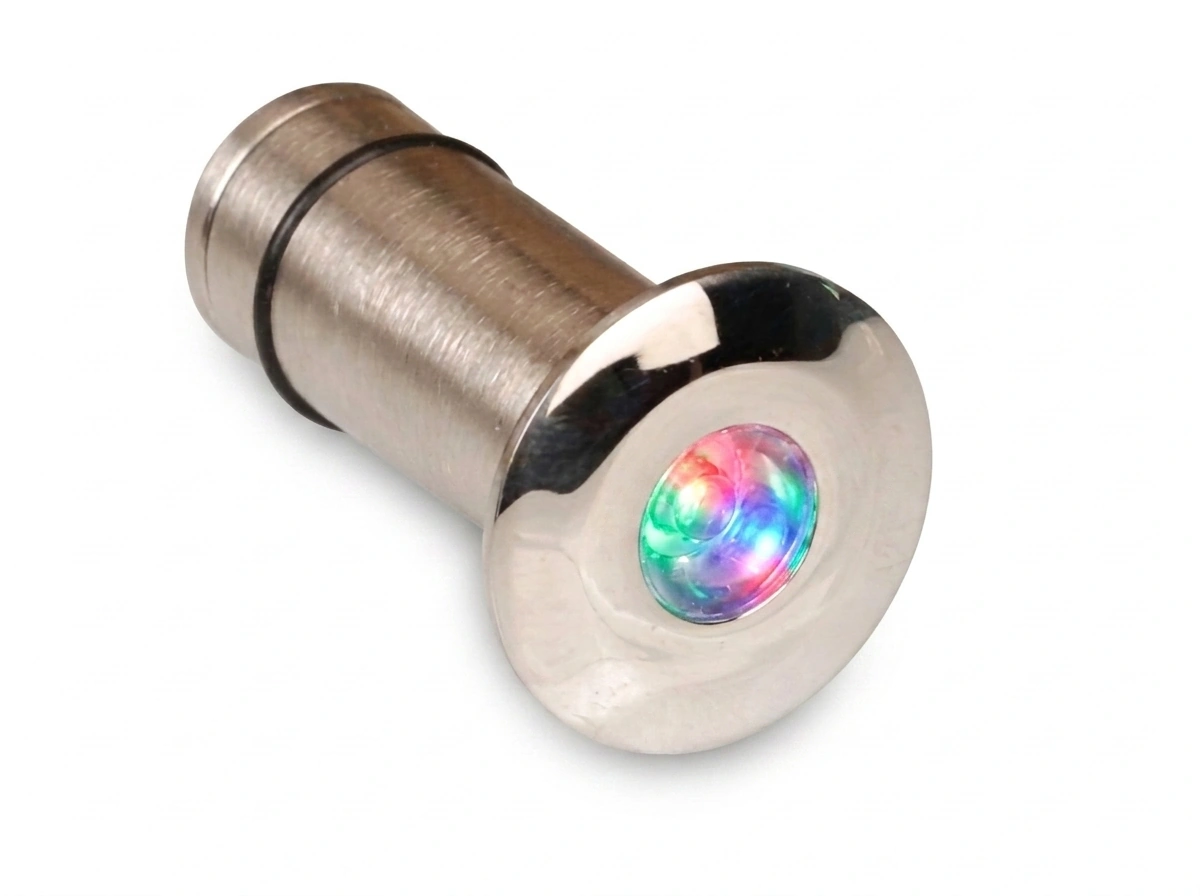

00058-AFull RGB
- Material
- AISI 304 Stainless Steel (316 optional)
- LED Type
- Power LED
- Number of LEDs
- 1 pcs
- Power
- 1W ±10%
- Input Voltage
- 5V±1V DC
- Lumen
- ≤165 Lm
- Light Intensity
- ≤15.964 mcd
- Operating Temperature
- -30°C ~ +80°C
- Storage Temperature
- -30°C ~ +80°C
- Cable Length
- 1 m
- Cable Type
- 4x0.75 mm² TTR
- IP Rating
- IP68
- Maximum Lifespan
- 50,000 hours
Technical Parameters
| Code | 00053-A | 00054-A | 00055-A | 00056-A | 00057-A | 00058-A |
| Color | White (CW) | Daylight (WW) | Red | Green | Blue | Full RGB |
| Material | AISI 304 Stainless Steel (316 optional) | AISI 304 Stainless Steel (316 optional) | AISI 304 Stainless Steel (316 optional) | AISI 304 Stainless Steel (316 optional) | AISI 304 Stainless Steel (316 optional) | AISI 304 Stainless Steel (316 optional) |
| LED Type | Power LED | Power LED | Power LED | Power LED | Power LED | Power LED |
| Number of LEDs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
| Power | 1W ±10% | 1W ±10% | 1W ±10% | 1W ±10% | 1W ±10% | 1W ±10% |
| Input Voltage | 5V±1V DC | 5V±1V DC | 5V±1V DC | 5V±1V DC | 5V±1V DC | 5V±1V DC |
| Lumen | ≤120 Lm | ≤110 Lm | ≤52 Lm | ≤57 Lm | ≤24 Lm | ≤165 Lm |
| Light Intensity | ≤22.394 mcd | ≤22.155 mcd | ≤14.930 mcd | ≤20.528 mcd | ≤4.853 mcd | ≤15.964 mcd |
| Operating Temperature | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C | -30°C ~ +80°C |
| Cable Length | 1 m | 1 m | 1 m | 1 m | 1 m | 1 m |
| Cable Type | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 2x0.75 mm² TTR | 4x0.75 mm² TTR |
| IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Maximum Lifespan | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Technical Drawing Downloads
