Every electro-mechanical component of a swimming pool — the filtration pump, LED lighting fixtures, automatic chemical dosing units, and salt chlorinators — is governed by the central electrical control panel. Undersized contactors, miscalibrated thermal overload relays, or sub-IP55 enclosures can trigger catastrophic motor burnout, electrical fires, and costly downtime.
Safety and automation architecture of pool electrical control panels

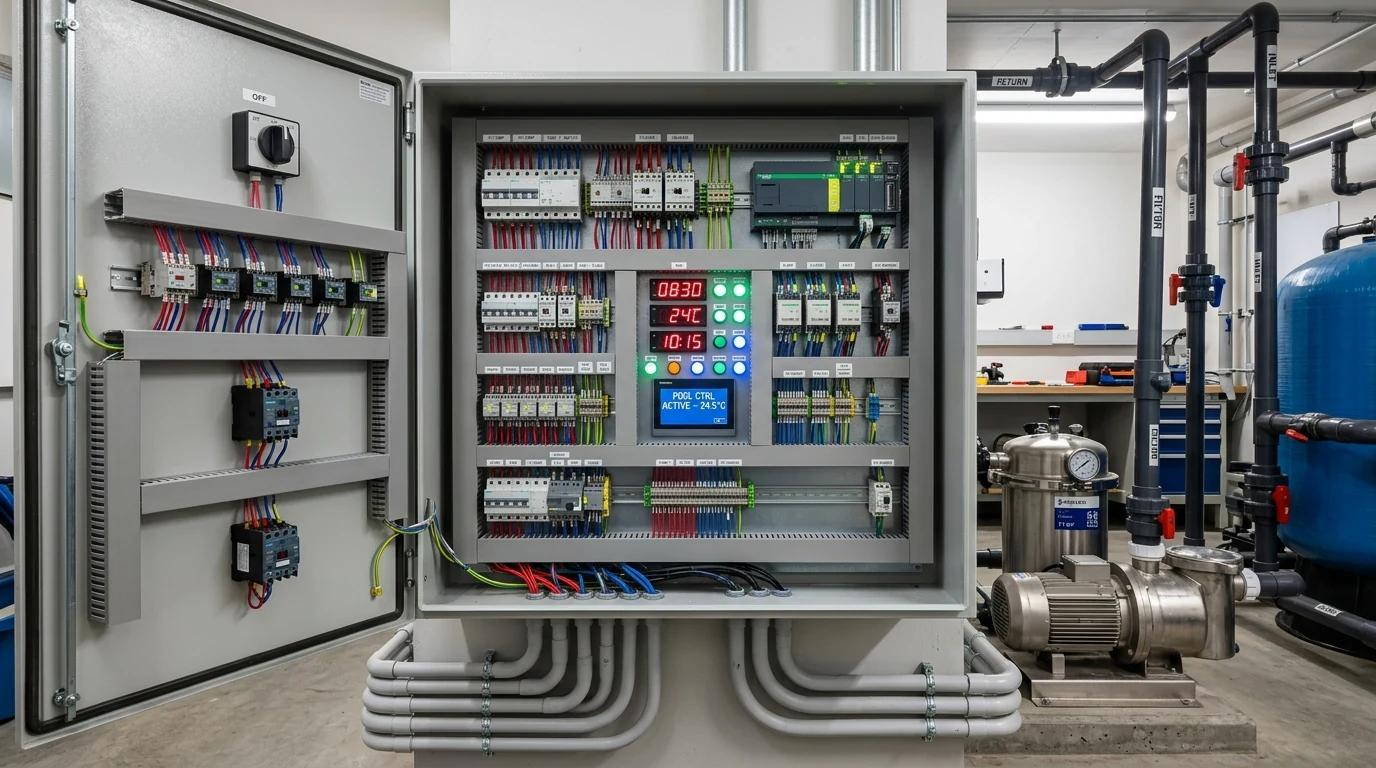

Mandatory components inside an engineered pool control panel include: A master 30 mA residual current breaker (RCD) for life safety, an adjustable thermal motor protection switch (MPCB), silent AC contactors, a 24-hour quartz-reserve mechanical or digital timer, secondary lighting fuses, and Auto/Manual 3-position selector switches.
Under the TS HD 60364-7-702 electrical standard for swimming pool zones, all panels must achieve at least an IP65 ingress rating, housed in impact-resistant polycarbonate or stainless steel enclosures fully shielded from corrosive plant-room humidity and chlorine vapors.
Thermal overload relay calibration and phase failure protection
The leading cause of pool pump motor failure is prolonged overcurrent when strainer baskets jam, or starting capacitor degradation in single-phase units. The thermal overload relay must be calibrated precisely between 105% and 110% of the motor nameplate rated current (In). For instance, a pump drawing 4.8 A nominal requires the thermal trip dialed to 5.0 – 5.2 A.
For three-phase (380V) commercial and semi-Olympic pumps, installing phase-failure and phase-sequence monitoring relays is mandatory. If an incoming mains phase drops or reverses sequence, the motor will stall or spin backward under destructive two-phase draw; a phase monitor trips the main contactor instantly.
RGB LED modulator panels, transformer VA sizing, and remote synchronization
For synchronized multi-color RGB underwater lighting, SNY Pool Modulator Panels provide flawless central control. The modulator panel steps 220V mains down to 12V AC via high-efficiency toroidal safety transformers and switches color scenes instantaneously via RF handheld remotes.
Transformer sizing requires a minimum 20% to 25% continuous safety headroom: Transformer Rating (VA) = (Total LED Wattage) x 1.25. For example, four 30W PAR56 LED fixtures (120W total) dictate at least a 150 VA or 200 VA isolation transformer. Undersized transformers overheat, drop secondary voltage, and cause visible RGB color flicker.
Dosing pumps, float switches, and winter-mode commissioning checklist
Technical commissioning checklist: 1) Wire automatic chlorine and acid dosing pumps strictly across the main circulation pump's auxiliary NO contact; this guarantees dosing interlocks shut off instantly whenever water flow stops, preventing dangerous chlorine gas pockets; 2) Connect balance tank float switches to activate dry-run protection lockouts; 3) In winter standby mode, program timers for two 30-minute anti-freeze circulation cycles daily.
